Showing 70–80 of 205 results

HDMI/DVI A/V, Serial and IR Control Signals over Cat5/6 CablingReceives IP-based audio/video transmitted point-to-point from a source 328 ft. away Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switchCreate a Multi-In, Multi-Out Installation Using B160-Series Transmitters and ReceiversConnect up to 64 transmitters and 255 receivers through multiple dedicated managed network switchesIGMP-enabled switches allow centralized control over which sources show on which displaysDisplays video from any analog or digital source, so you can mix and match technologies and use existing sources and monitorsEnhanced Technical FeaturesSupports video resolutions up to 1920 x 1080 (1080p) @ 60 HzUses H.264 video compression standardTransmits on 20–60 kHz IR frequencyExtends IR control signals that control a source from a remote displaySupports RS-232 serial baud rates up to 57600 BpsHDCP and 3D compatible when used with a DisplayPort or HDMI transmitter Plug-and-Play FunctionalityNo software or drivers requiredHardware included for mounting on wall, rack or poleCompatible with all B160-Series A/V over IP transmittersTAA-CompliantCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Distributes HDMI/DVI A/V, Serial and IR Control Signals over Cat5/6 CablingConverts audio/video to an IP-based signal that is transmitted point-to-point to a display 328 ft. awayAdd low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switchHDMI output for connecting a local displayCreate a Multi-In, Multi-Out Installation Using B160-Series Transmitters and ReceiversConnect up to 64 transmitters and 255 receivers through multiple dedicated managed network switchesIGMP-enabled switches allow centralized control over which sources show on which displaysVideo source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitorsEnhanced Technical FeaturesSupports video resolutions up to 1920 x 1080 (1080p)Uses H.264 video compression standardTransmits on 20–60 kHz IR frequencyExtends IR control signals that control a source from a remote displaySupports RS-232 serial baud rates up to 57600 BpsHDCP and 3D compatible when used with a DisplayPort or HDMI receiverPlug-and-Play FunctionalityNo software or drivers requiredHardware included for mounting on wall, rack or poleCompatible with all B160-Series A/V over IP receiversTAA-CompliantCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

The B055-001-USB-VA NetDirector® USB Server Interface Unit connects a server or computer with HD15 VGA video, 3.5 mm audio and USB mouse/keyboard ports to a compatible B064-IPG Series KVM switch. Using Cat5e/6 cabling, you can locate the KVM switch up to 164 feet (50 meters) from the server.Allowing the server to access the KVM switch’s Virtual Media functionality via low-cost Cat5e/6 cable eliminates the need for bulky KVM cables. This frees up precious space in your server cabinet, and allows for better ventilation and longer cable runs. Running cable through conduit and other tight spaces takes advantage of the increased flexibility when setting up your network application.No software or external power supply is needed. The unit’s compact, lightweight design is plug-and-play for immediate installation and deployment. It complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Note: SIUs that were purchased prior to that of your KVM switch may require a firmware upgrade in order for them to work properly (see Maintenance under OSD Operation section of your B064-Series KVM Owner's Manual for details)

Distributes DisplayPort A/V, Serial and IR Control Signals over Cat5/6 CablingConverts audio/video to an IP-based signal that is transmitted point-to-point to a display 328 ft. awayAdd low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switchHDMI output for connecting a local displayCreate a Multi-In, Multi-Out Installation Using B160-Series Transmitters and ReceiversConnect up to 64 transmitters and 255 receivers through multiple dedicated managed network switchesIGMP-enabled switches allow centralized control over which sources show on which displaysVideo source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitorsEnhanced Technical FeaturesSupports video resolutions up to 1920 x 1080, including 1080p (limited to receiver’s max resolution)Uses H.264 video compression standardTransmits on 20–60 kHz IR frequencyExtends IR control signals that control a source from a remote displaySupports RS-232 serial baud rates up to 57600 BpsHDCP and 3D compatible when used with a DisplayPort or HDMI receiver (not compatible with VGA receiver)Plug-and-Play FunctionalityNo software or drivers requiredHardware included for mounting on wall, rack or poleCompatible with all B160-Series A/V over IP receiversTAA-CompliantCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

The BHDBT-K-E3SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 99.97 m (328-ft.) over a single Cat5e/6/6a cable, including an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal. In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray™ player, cable/satellite box, and HDMI television, to communicate with each other and access online content via LAN. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-E3SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP.- Ideal for digital signs, classrooms and trade show booths- Built-in 10/100 Ethernet ports on transmitter and receiver- Extends a 3840 x 2160 (4K x 2K) signal up to 99.97 m (328 ft.)- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD- Controls RS-232 serial devices at baud rates up to 115 Kbps- Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths- Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 99.97 m (328 ft.)- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio- Supports 3D video, EDID and HDCP- Reduces cable clutter and installation costs- Allows connected devices to communicate with each other and access online content via LAN- 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)- RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors- Plug and play with no software or drivers to download and install- Included mounting hardware for installing each unit on a wall, rack or pole- Prevent cables from coming loose or disconnected, ensuring an intact signal

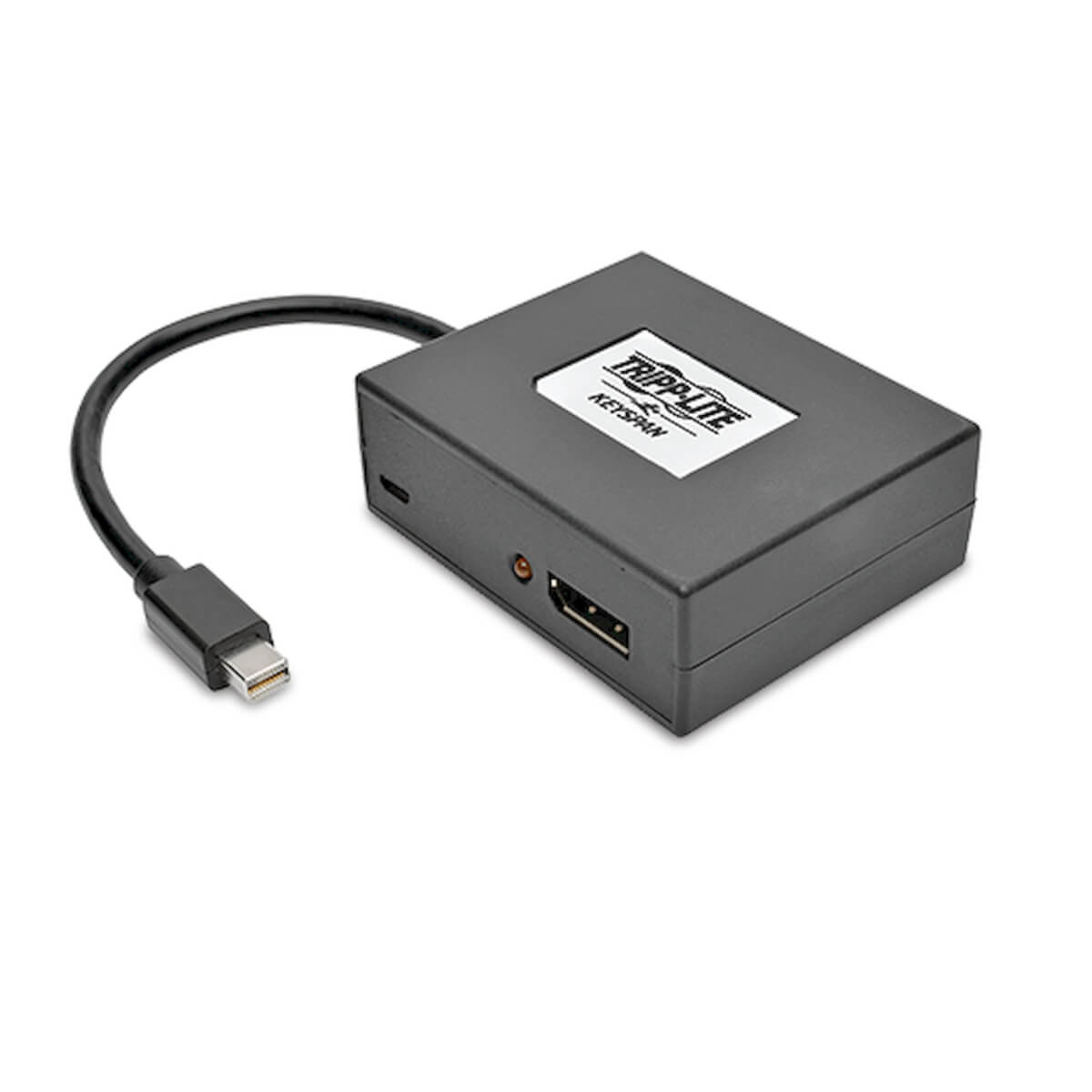

The B155-002-DP-V2 2-Port Mini DisplayPort 1.2 to DisplayPort MST Hub connects two DisplayPort monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.The B155-002-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160). This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.The B155-002-DP-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-002-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Connects 2 DisplayPort Monitors to Your Computer’s Mini DisplayPortIdeal for digital signs in schools, churches, conference rooms, trade shows and retail settingsDisplays same image on 2 monitors simultaneously in mirror modeExtends desktop across 2 monitors in extended modeCombines 2 monitors into one large monitor in video wall modeBuilt-in 6 in. cable connects directly to Mini DisplayPort sourceLEDs indicate when monitors are receiving a signalMeets the Latest Performance StandardsSupports UHD video resolutions up to 4K @ 60Hz (3840 x 2160)Supports HDCP, EDID and DDCSupports 48-bit Deep Color (16 bits per channel)Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audioBackward compatible with DisplayPort 1.1 and 1.1aEasy to Use Almost AnywhereWorks with all operating systemsPlug and play—no software, drivers or external power supply requiredBus-powered via included USB Micro-B cableTAA CompliantComplies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

2Port DisplayPort to DisplayPort Splitter/Extender Kit over Cat6, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft. 70 m, TAA

3Port DisplayPort to HDMI MultiMonitor Splitter, MST Hub, 8K/4K 60 Hz, DP 1.4, TAA

3Port DisplayPort to DisplayPort Splitter/Extender Kit over Cat6, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft. 70 m, TAA

3Port DisplayPort to DisplayPort MultiMonitor Splitter, MST Hub, 8K/4K 60 Hz, DP 1.4, TAA
